CWT Linear Cutter

The CWT precision linear-cutting tool is, simply put – an exceptionally-engineered bladed guide rule that is designed to speed up and refine the process of manual cutting

Overview

The idea behind this tool comes from decades of CWT's own experience in traditional sign manufacturing where they performed long and precise cuts every day.

They also wanted a tool so easy and flexible to use that anyone could handle in just a few minutes and be able to change the standard and affordable blades in a matter of seconds.

With this tool you will experience a huge increase in your daily production and also have the satisfaction of getting perfect results every time while avoiding unnecessary waste of material.








Details

The rulers are made of extruded and powder-coated aluminum profiles which mean high durability but also low weight for easy operation, the cutter heads are made from high quality steel and are manufactured with very high precision.

The materials to be cut lies still while you easily move the linear cutter into wanted position which is a unique feature possible thanks to the built in pressure system and non-skid bottom surface. Our method is very smooth compared to conventional cutting where you have to move the materials instead.

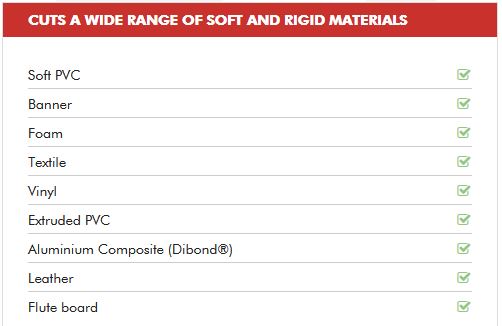

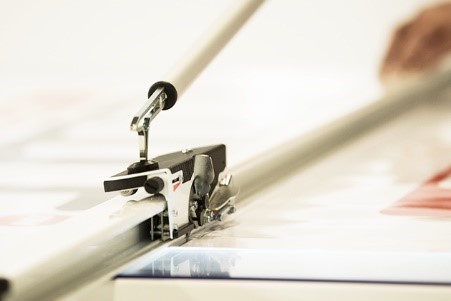

The CWT Linear cutter has a full-length anti-slip mesh fixed to its flat underside giving you superb grip without damaging the graphics, nylon guide wheels for nearly silent operation, adjustable constant-pressure cutting control and an adjustable knife depth. This unique non-skid feature, where the media is moved not the cutting tool, guarantees absolute precision and is tough enough to cut through a broad range of both soft and rigid media and materials. Ideally suited for use with the CWT application tables, our linear cutters can also be used on any suitable flat, protected surface and are supplied in a variety of lengths from 1.2 metres up to 5 metres with several options in-between.

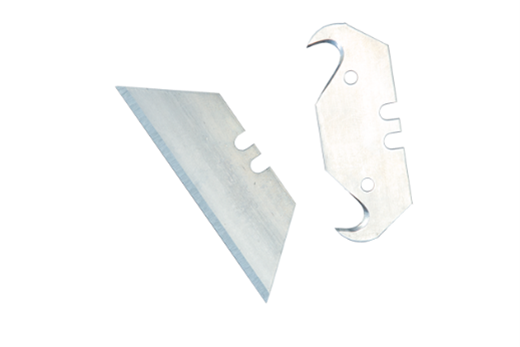

The readily available and easy to replace knife blades can be secured at the correct depth for any given application and can cut through a multitude of substrates from delicate fine-art papers and foam-centred rigid board to solid-centred plastic boards up to 5mm thick. Just note that thicker substrates may require a series of lighter cuts rather than one single, deep cut.

Sizes

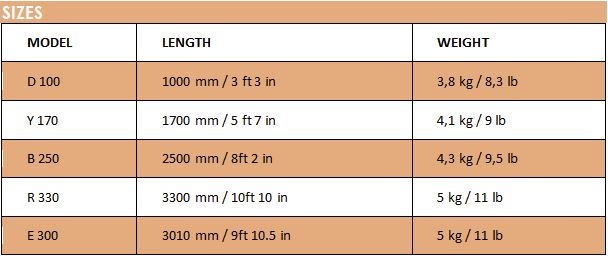

The linear Cutter comes in five standard lengths and are packed and transported in reinforced paper board parcels 100 x 100 mm in appropriate length.
