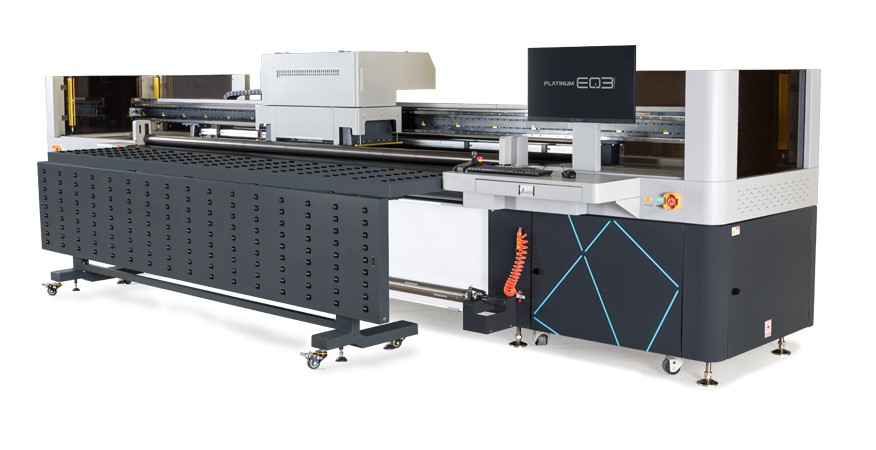

Platinum EQ3 Hybrid


The Platinum EQ3 Hybrid printing machine is a state-of-the-art device designed to meet modern printing needs. This machine stands out with a range of features that enable users to complete their tasks more efficiently.

The machine's dual-sided practical material loading feature speeds up workflow, saving time and effort for users. Additionally, the 4-zone vacuum system ensures materials are held securely in place, enhancing print quality and minimizing the risk of material slippage.

Collision and safety sensors play a crucial role in ensuring workplace safety. These sensors detect potential collisions, safeguarding operators and equipment.

The Auto Continuous System for rigid and roll materials enables the machine to adapt to different printing requirements, ensuring a seamless production process. This feature enhances efficiency when working with various materials.

The Platinum EQ3 Hybrid can print up to 50mm in height, providing versatility for a wide range of applications. This flexibility allows users to work with different materials for various projects.

The automatic material height measurement system simplifies the process of setting accurate material parameters for precise printing. This feature improves print quality and minimizes material wastage.

The Platinum EQ3 Hybrid printing machine is a reliable solution offering advanced features to meet the needs of businesses and industries. By combining flexibility, efficiency, and safety, it helps users optimize their printing operations.



Printheads KM1021i or Ricoh gen 5 or 6
Number of Heads 16 maximum
Droplet Volume 13 picolitre or 6pl
UV Ink CMYK Lc, Lm, White, Varnish
Print Resolution 2880dpi or 1200dpi
Curing UV LED
Printwidth 3300mm
Max print speed 180m2/hr
Max thickness 50mm
RIP PhotoPrint or Optional Caldera
