Compact Lifter
Hydraulic media lifter
Pressing the footpedal you can easily lift rolls up to 130 cm and 200 kg.
Manual |
Compact e-Lifter Lite
Excellent maneuverability
Designed to work in small spaces, it has excellent maneuverability. Loading capacity 100 kg.
Battery |
Compact e-Lifter PRO
The biggest loading capacity
Lifts rolls up to 500 cm wide and 300 kg only by pressing up/down controls.
Battery
|
Media lifters to feed printers
An essential piece of equipment for every wide format printer. Use our media lifters to avoid back injuries and to load alone media rolls to the printer effortless.
LOAD ROLLS FROM THE GROUND
Load alone heavy media rolls directly from the ground to the printer with no effort.
|
SAFETY WORK MODE
The ramps raised and act as a stop to prevent material from falling during transport.
|
| | | | |
|---|
| Model | Compact e-Lifter Lite | Compact Lifter | Compact e-Lifter Pro |
|---|
| Operated | Battery | Manual | Battery |
|---|
| Loading capacity | 100 kg | 200 kg | 300 kg |
|---|
| For rolls up to | 320 cm | 500 cm | 500 cm |
|---|
| Máx. roll Ø | 40 cm | 26 cm | 30 cm |
|---|
| Lifts up to | 170 cm | 125 cm | 130 cm |
|---|
| Battery capacity | 72 cycles | - | 54 cycles |
|---|
| Wheels height | 12 cm | 8 cm | 8 cm |
|---|
 |
Media lifters for wide rolls
You can easily lift rolls up to 500 cm and 300 kg. Avoid back injuries and to load alone media rolls to the printer effortless.
|
Media lifters for wide format printers
Our media lifters are designed to facilitate the work of feeding printers. Thanks to the low height of the wheels you can load your printers in the most comfortable way.
|
 |

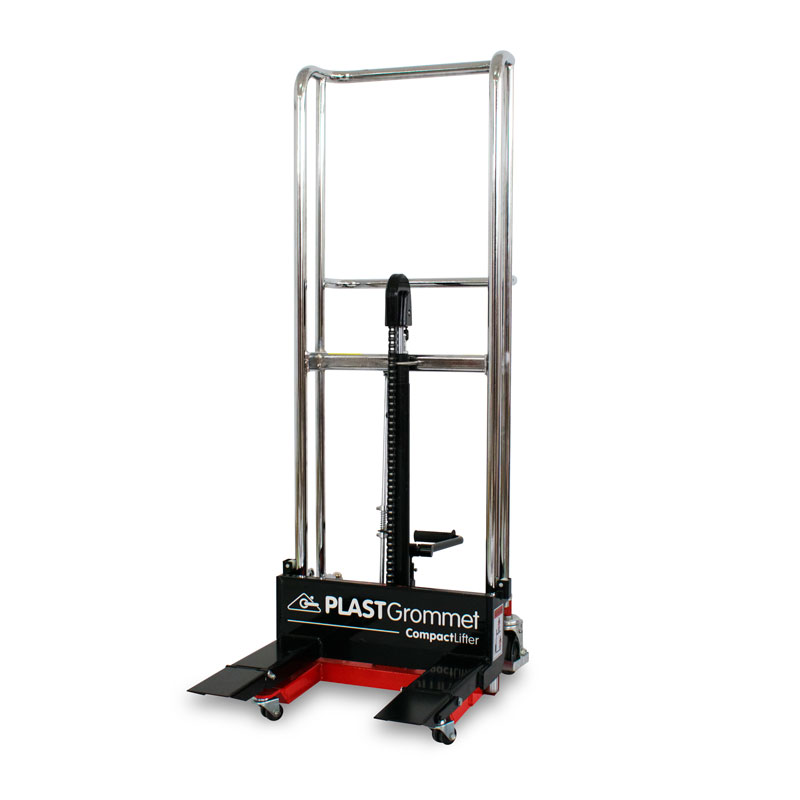

Plastgrommet Compact Lifter
Use the Compact Lifter to avoid back injuries and to load alone media rolls directly from the ground to the printer with no effort. Handling media rolls is an issue at any print shop.
With the Compact Lifter you will be able to feed printers, move heavy rolls with minimal effort.
- Load directly from the floor using hands or feet
- Hydraulic with footpedal
- Lift up to 1.3m high to load from racks
- Maximum roll weight 200kg
- For rolls up to 5.0m wide
- Turn it sideways to move through doors (80cm) Click image to watch video
- Loading rolls is now a one person job
Plastgrommet Compact e-lifter Lite
Battery powered roll lifter with multi directional wheels so you can go through standard doors.
Rear wheels have brakes to make easy to roll the media up a ramp.
- 100kg maximum lifting weight
- For rolls up to 3.2m wide
- 40cm maximum roll diameter
- Wheel height 12cm
Compact e-lifter Pro
Battery powered roll lifter with multi directional wheels so you can go through standard doors.
Rear wheels have brakes to make easy to roll the media up a ramp.
- 300kg maximum lifting weight
- For rolls up to 5m wide
- 30cm maximum roll diameter
- Wheel height 8cm
Click image to watch video
