All in One EDGE

The same integrated welding, eyeleting, and cutting capabilities as the flagship All In One system, but in a compact, efficient format tailored to medium-sized print businesses.

ts working width of 600–3200mm and the ability to finish a 50-metre roll in just 15 minutes mean that the All In One Edge is built for productivity.

A true one-person operation, it allows growing print shops to scale output while eliminating bottlenecks and delivering more jobs in less time

Key Points

• Increase efficiency – finish 50m rolls in minutes.
• Reduce labour – one-person operation with compact footprint.
• Improve quality – automated precision for consistent welding, eyeleting, and cutting.
• Scale with confidence – built for growing businesses who need to keep up with demand.

Features

• Working width - 600–3200 mm, adjustable.
• Maximum roll diameter - 500 mm.
• Working mode - Roll to banner – machine cuts to a constant length throughout the roll.
• Tension control - Braked unwind mechanism ensures consistent tension.
• Eyeleting - Two electric Autocross machines.
• Eyelet spacing - Selectable from the touchscreen, constant across the roll.

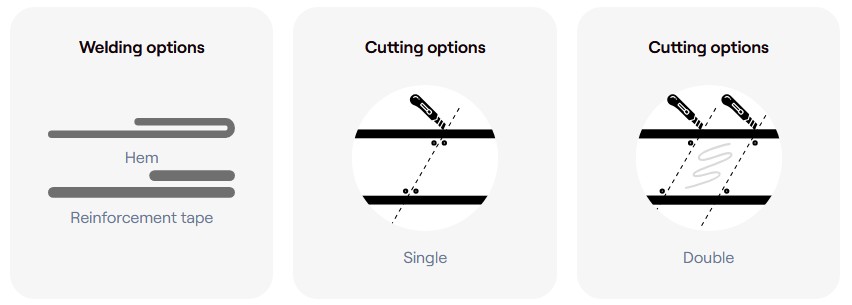

• Cutting gantry - Adjustable width reduces cycle time on narrow banners. Double cuts possible.
• Media sensor - Machine automatically stops when roll is finished.
• Remote support - Connect via Ethernet or Wi-Fi for updates, monitoring, or troubleshooting.
• Safety - Fully enclosed moving parts, protected cutting gantry, emergency stop systems (including rope-pull switch).
• Efficiency - Designed for one-person operation with a compact footprint.

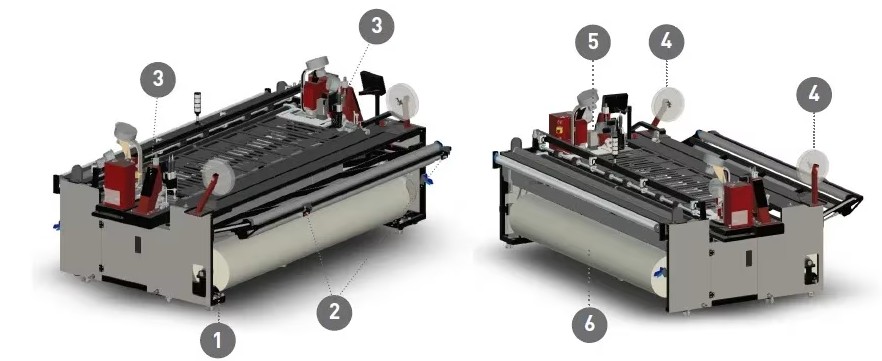

Options

• Roll edge alignment kit – automatic pneumatic adjustment of roll edge.
• In-line slitter kit – cuts material to correct width (requires hem welding kit).
• Hem welding kit – includes welders, electronics, hemming guides, extension shaft.
• Tape welding kit – guides and dispensers for tape welding (requires hem welding kit).
• Vision system kit – reads eyelet and cut marks for precision alignment.
• Roll-to-roll kit – rewinding system with air shaft and supports for fence banners.
